== Соединения Zr (òîì 31) == |
- |
||
- |
|||
|
- |
||
1. T.31, c.0394 C2Cs2F8O4Zr2*4H2O Monoklin Grupa 4,11
a= 14.668 b= 13.9203 c= 6.768 beta= 84.29 da=.007 db=.0008 dc=.003 dbeta=.04 V= 1375

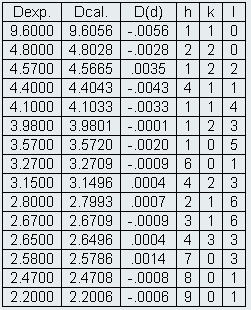

2. T.31, c.0447 CoZr{PO4}2*4H2O Rombik GRUPA 31,59
a=19.95 b=10.959 c=18.153 da= .01 db= .008 dc= .006 v=3969
3. T.31, c.0490 CuZr{PO4}2*4H2O Rombik GRUPA 32,55
a=20.714 b= 9.709 c=24.77 da= .003358 db= .006499 dc= .024106 v=4982
Monoklin Grupa 3
a= 13.841 b= 13.722 c= 14.797710 beta= 75.71 da=.002 db=.009 dc= .003 dbeta=.01 V= 2724
4. T.31, c.0926 NiZr{PO4}2*4H2O Rombik GRUPA 33,62
a=22.231 b= 8.80 c=18.825 da= .002 db= .01 dc= .004 v=3684
Monoklin Grupa 3
a= 13.278 b= 13.9013 c= 11.6131 beta= 96.17 da=.003 db= .0007 dc=.0008 dbeta=.04 V= 2131
5. T.31, c.1141 C2F4K2O4Zr2*2H2O Rombik GRUPA 19
a=14.93 b=15.590 c=21.985 da= .01 db= .002 dc= .001 v=5117
Monoklin Grupa 3
a= 13.837 b= 12.768 c= 10.776 beta= 86.97 da=.002 db= .002 dc=.002 dbeta= .01 V= 1901
6. T.31, c.1478 ZnZr{PO4}2*4H2O Rombik GRUPA 26,28,51
a=20.837 b= 6.95 c=24.26 da= .009 db= .01 dc= .01 v=3512
Triklin
A= 9.6259 DA= .0007 B= 17.02237 DB= .00003 C= 10.486 DC= .008 GAMMA= 77.808 DGAMMA= .005 BETA =113.726 DBETA = .007 ALPHA= 93.21 DALPHA= .01 V= 1537
7. T.31, c.1480 ZrBrH0.5 Triklin
A= 9.790 DA= .002 B= 9.9937 DB= .0002 C= 7.00817 DC= .00008 GAMMA= 99.932 DGAMMA= .003 BETA = 84.182 DBETA = .008 ALPHA= 93.336 DALPHA= .002 V= 671.3
8. T.31, c.1481 ZrBrH Rombik GRUPA 54
a= 6.973 b= 9.734 c=12.085 da= .009 db= .002 dc= .001 v= 820
9. T.31, c.1482 Zr{ClO4}4 Monoklin grupa 4,11
a= 13.620 b=12.331 c= 11.913 beta= 64.31 da=.001 db=.001 dc= .001 dbet=.01 V=1803
Triklin
A= 7.49470 DA= .00004 B= 8.7217 DB= .0001 C= 11.78796 DC= .00005 GAMMA=110.0200 DGAMMA= .0009 BETA = 93.7018 DBETA = .0003 ALPHA= 85.04743 DALPHA= .00003 V= 720.8
10. T.31, c.1483 ZrClH0.5 Monoklin
a= 12.293 b= 13.400 c= 8.0883 beta= 81.08 da=.008 db=.001 dc=.0003 dbeta=.04 V= 1316
12. T.31, c.1484 ZrClH Rombik GRUPA 48
a=12.809 b=13.4573 c=19.779 da= .001 db= .0008 dc= .003 v=3409 |
Monoklin Grupa 3
a= 24.8713 b= 9.2876 c= 3.5133 beta= 92.628 da=.0005 db= .0003 dc=.0005 dbeta=.009 V= 811
13. T.31, c.1485 beta-Zr{HAsO4}2 Rombik GRUPA 33,62
a=19.503 b= 5.5615 c=16.54 da= .001 db= .0003 dc= .02 v=1794
Monoklin grupa 3
a= 9.588 b= 8.4340 c= 8.783 beta= 78.822 da=.001 db=.0009 dc= 6.809 dgam= .007 V=697
14. T.31, c.1487 alfa-H2Zr{PO4}2 Rombik GRUPA 29,57
a=13.810 b= 9.011 c=10.201 da= .001 db= .001 dc= .001 v=1269.2
15. T.31, c.1488 gamma-ZrH2{PO4}2 Monoklin Grupa 3
a= 12.534 b= 9.98915 c= 17.9859 beta= 76.85 da=.009 db= .00004 dc= .0004 dbeta=.05 V= 2193
16. T.31, c.1489 Zr{HPO4}2*7H2O Monoklin Grupa 4,11
a= 9.317 b= 18.781 c= 11.361 beta= 97.37 da=.004 db= .004 dc=.004 dbeta=.03 V= 1971
17. T.31, c.1490 Zr{HPO4}2*8H2O Rombik GRUPA 29,57
a=13.521 b=10.38 c= 8.18 da= .008 db= .01 dc= .02 v=1148
18. T.31, c.1494 C2O6Zr*xH2O Rombik GRUPA 27,49
a=14.71 b= 9.394 c=21.178 da= .01 db= .002 dc= .008 v=2926
Monoklin Grupa 3
a= 21.266 b= 7.30517 c= 11.54 beta= 91.45 da=.004 db=.00001 dc=.01 dbeta=.09 V= 1791
Triklin
A= 16.407 DA= .001 B= 8.007 DB= .001 C= 6.866 DC= .003 GAMMA= 82.26 DGAMMA= .01 BETA =102.14 DBETA = .01 ALPHA= 92.386 DALPHA= .006 V= 874
19. T.31, c.1495 ZrO{ClO4}2 Monoklin grupa 3
a= 14.8633 b= 15.450 c= 17.5091 beta=70.852 da=.0009 db=.001 dc=.0007 dbeta= .004 V=3798
20. T.31, c.1496 Zr3{PO4}4 Rombik GRUPA 27,49
a=13.449 b=12.42 c=17.708 da= .009 db= .01 dc= .009 v=2958
Monoklin Grupa 3
a= 13.20 b=7.198 c= 14.328 beta= 69.66 da=.001 db=.001 dc= .005 dbeta=.04 V= 1277
Triklin
A= 18.9232 DA= .0007 B= 9.6180 DB= .0002 C= 7.7924 DC= .0004 GAMMA= 81.93 DGAMMA= .01 BETA = 89.578 DBETA = .01 ALPHA= 97.375 DALPHA= .006 V= 1392
21. T.31, c.1499 Zr3TiF15 Monoklin Grupa 4,11
a= 12.057 b= 19.388 c= 4.029 beta= 83.983 da=.003 db= .003 dc=.002 dbeta=.05 V= 937
22. T.31, c.1999 C2H6O8P2Zr Rombik GRUPA 16
a=16.251 b=21.991 c= 8.082 da= .008 db= .005 dc= .003 v=2888
Triklin
A= 14.436 DA= .003 B= 12.0866 DB= .0003 C= 12.589 DC= .001 GAMMA=110.80 DGAMMA= .01 BETA = 84.984 DBETA = .002 ALPHA=101.3388 DALPHA= .0005 V= 2013 |
||
- |
|||
- |
